Description

Set of 10 pcs NTC epoxy thermistor, epoxy coated with 100mm length of 26 AWG TPC FEP WIRE BLUE UL 11188

MAKE: THERMOSEN, India

PART NO:  TNT-103R3BD L101-BL

Qty: choose from dropdown menu

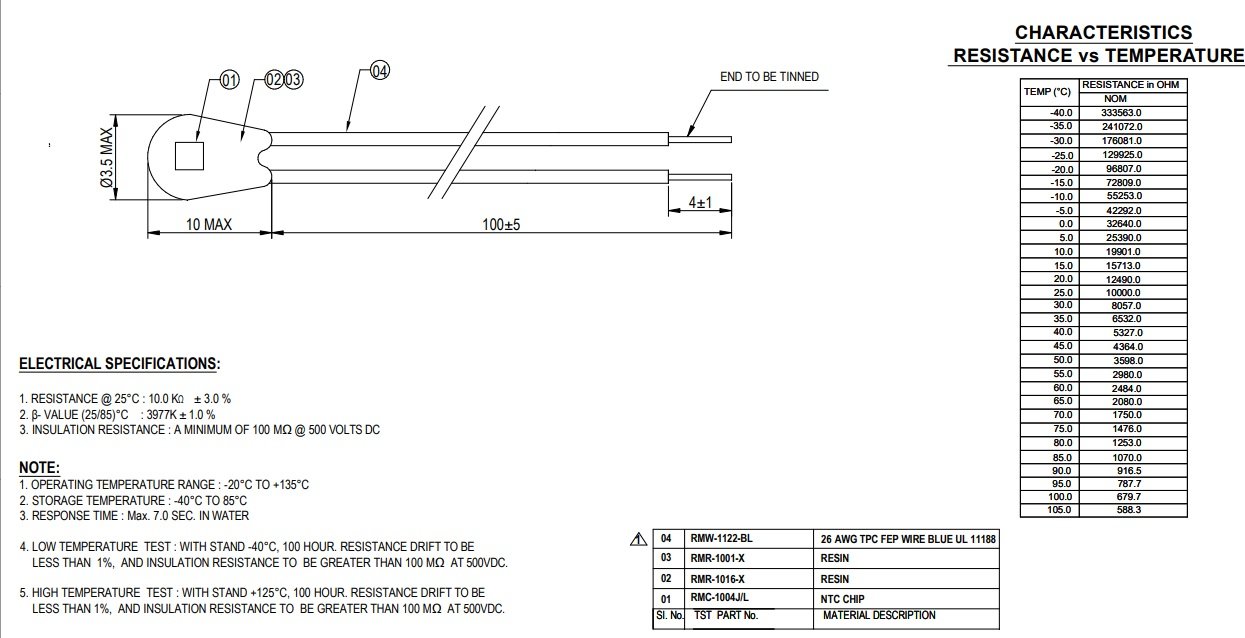

ELECTRICAL SPECIFICATIONS:

1. RESISTANCE @ 25°C : 10.0 KΩ ± 3.0 %

2. β- VALUE (25/85)°C : 3977K ± 1.0 %

3. INSULATION RESISTANCE : A MINIMUM OF 100 MΩ @ 500 VOLTS DC

Proudly design and manufactured in India

NOTE:

1. OPERATING TEMPERATURE RANGE : -20°C TO +135°C

2. STORAGE TEMPERATURE : -40°C TO 85°C

3. RESPONSE TIME : Max. 7.0 SEC. IN WATER

4. LOW TEMPERATURE TEST : WITH STAND -40°C, 100 HOUR. RESISTANCE DRIFT TO BE LESS THAN 1%, AND INSULATION RESISTANCE TO BE GREATER THAN 100 MΩ AT 500VDC.

5. HIGH TEMPERATURE TEST : WITH STAND +125°C, 100 HOUR. RESISTANCE DRIFT TO BE LESS THAN 1%, AND INSULATION RESISTANCE TO BE GREATER THAN 100 MΩ AT 500VDC.
