M4 LUG NTC Thermistor 10 pcs TANRAL , 10kΩ, B3977, 1%- 100mm
Price range: ₹299.00 through ₹11,999.00
Download Datasheet

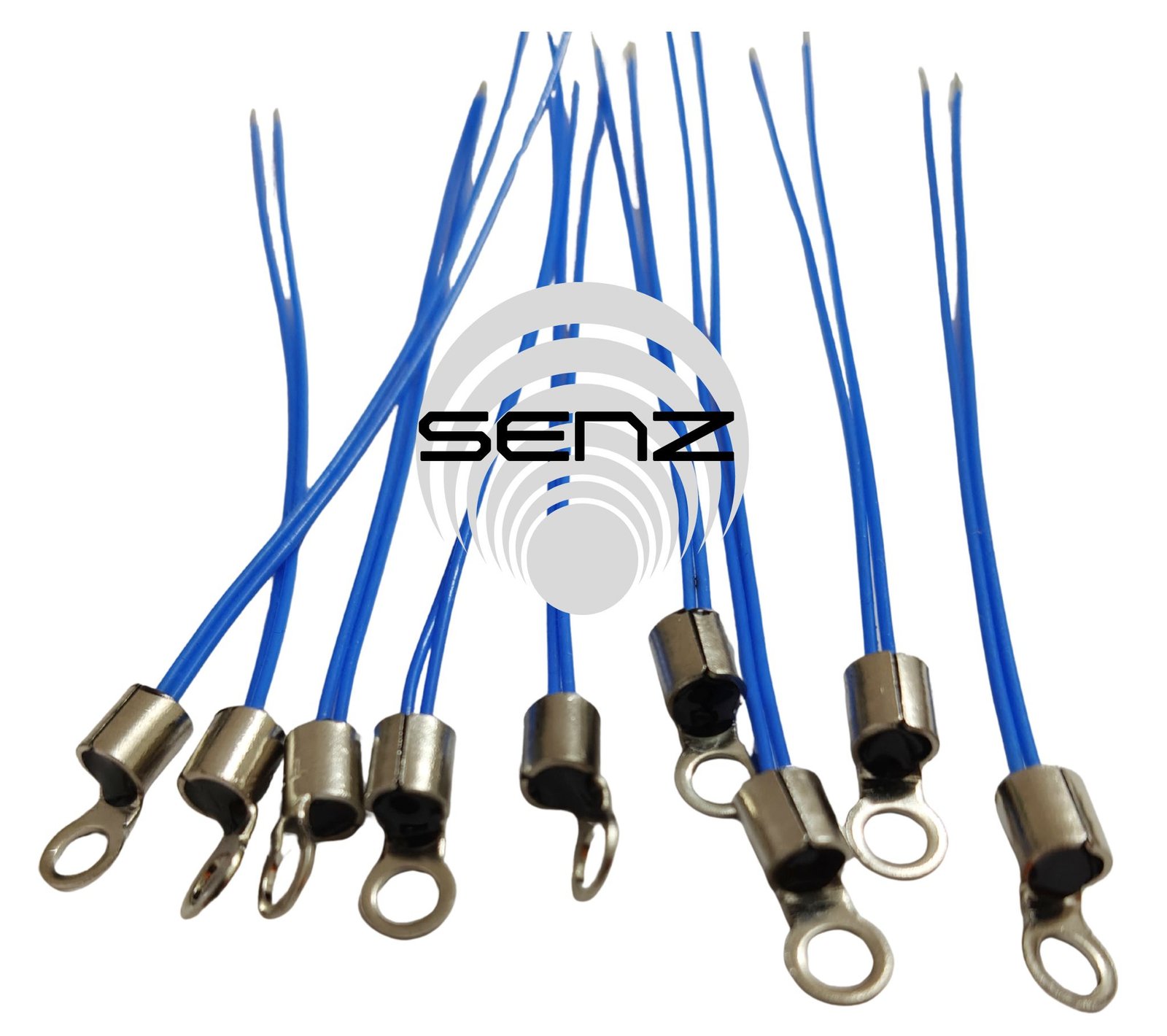

M4 Lug NTC thermistor
Description
NTC Thermistor with M4 size LUG along with PTFE wire that can be easily tighten on any heatsink of hot surface; These M4 Lug NTC thermistor are common temperature sensor used in Inverter, UPS, SMPS etc
VITAL SPECIFICATIONS:
MAKE: THERMOSEN, India
Qty: By default 10 pc; choose from dropdown menu for bulk discount rates
Resistance value: 10kΩ at 25°C, ±2%
Beta Value (25/85)°C: 3977k, ±1%
Insulation Resistance: Min. 100MΩ@500V DC under water
Voltage Breakdown strength: 1500V AC For 3 Second between housing and conductor
Operating Temperature: -40 to +125°C
Wire Lenght: 100mm (26 AWG Blue PTFE)
Lead time: 2-4 weeks
Enjoy shopping with SENZ
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Quantity Rate | 10 pc, 100 pc, 1000 pc |
